Connectors

beCPG provides a set of connectors to export data from the PLM to various formats and external systems. Connectors are Spring Boot applications that can be run in standalone mode, scheduled mode, or as part of a Spring Cloud Dataflow pipeline.

Available Connectors

Prerequisites

Before you begin, ensure you have the following installed:

• Java 17 or later
• Access to a beCPG instance with valid credentials

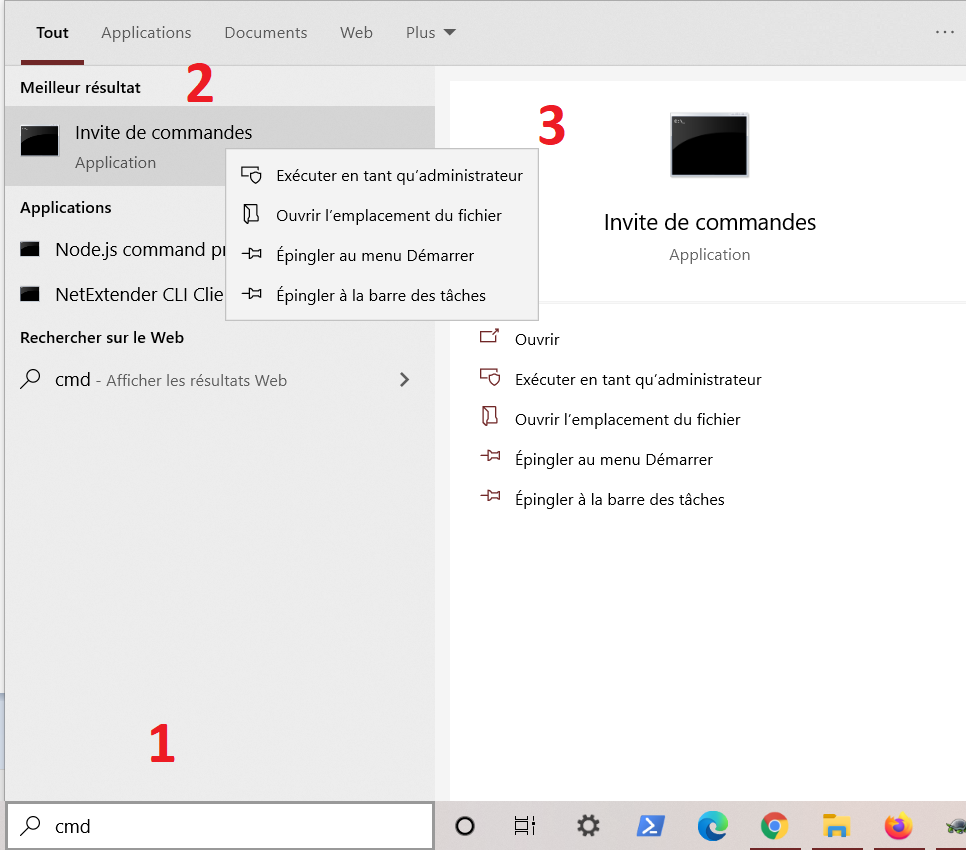

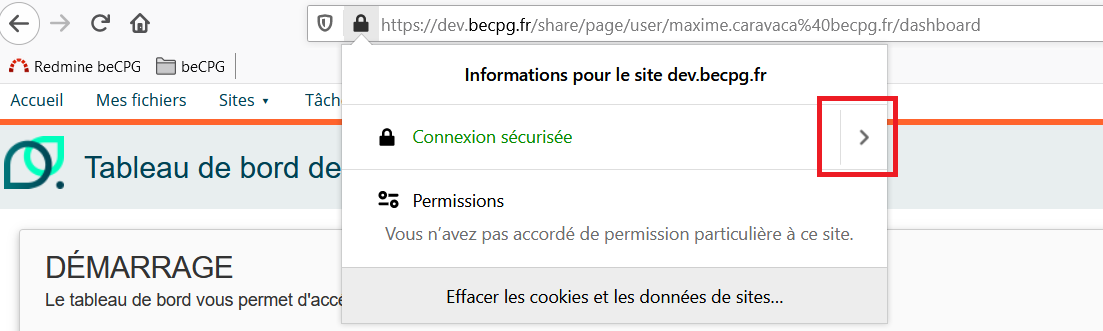

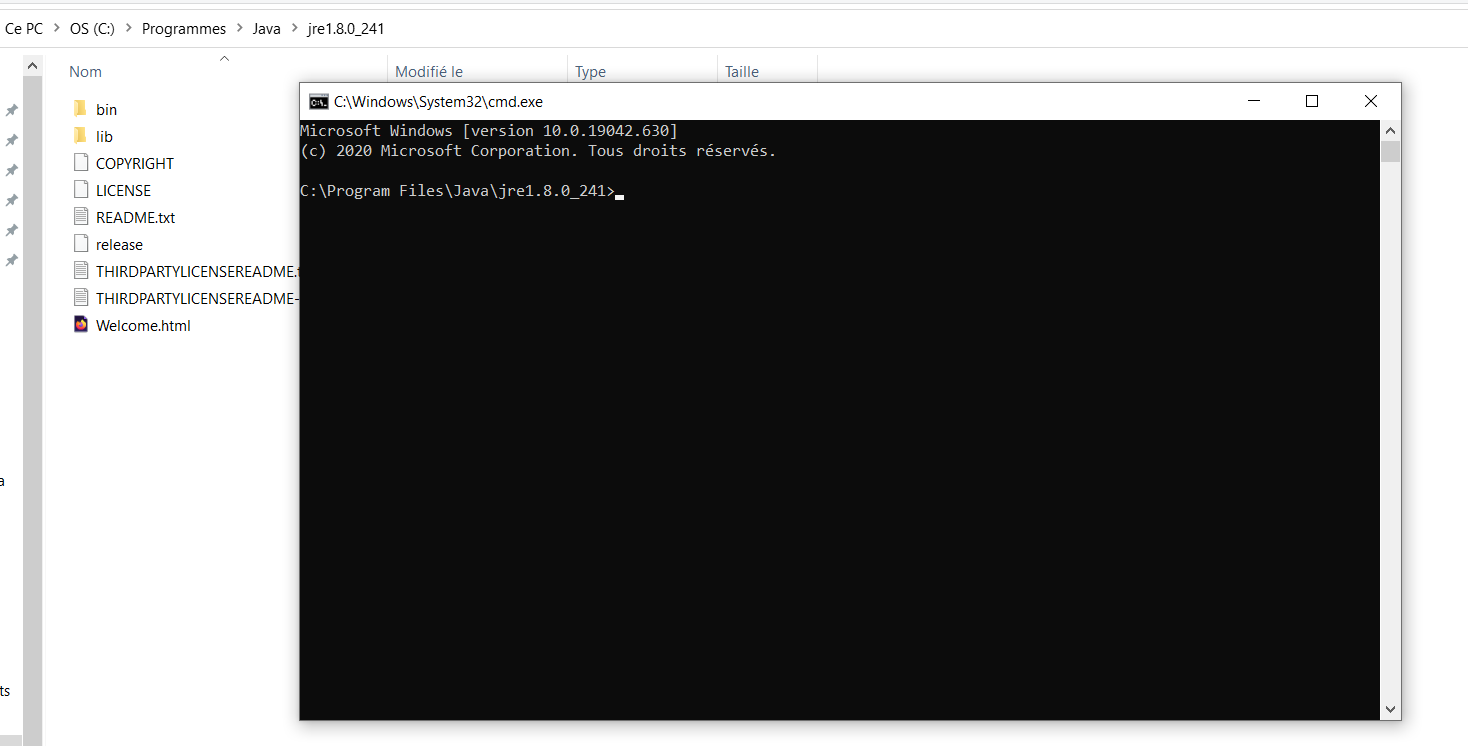

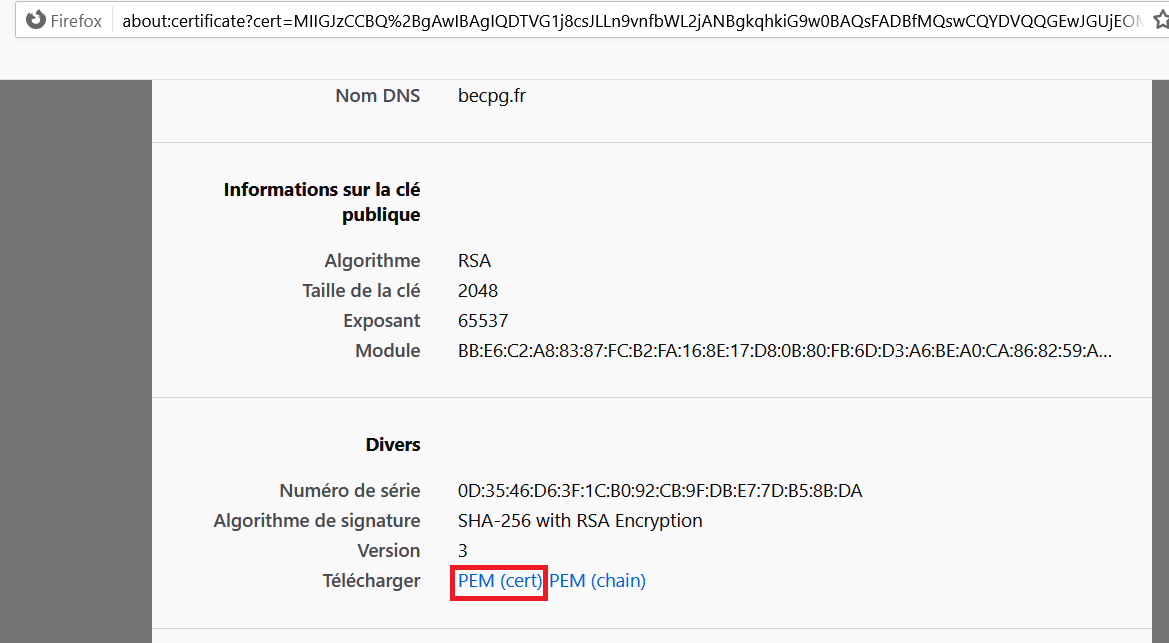

• For HTTPS connections with self-signed certificates, see Annex I: Certificate Installation

Versions

Compatibility with beCPG

This documentation covers the new generation of connectors (version 4.x). The compatibility with beCPG versions is as follows:

Note: Channel Mode requires beCPG 23.4.2 or later. For earlier versions, only Query Mode is supported.

Legacy Connectors

For older beCPG versions (prior to 23.4.2), please refer to the legacy connector documentation.

Common Configuration

This section covers configuration options shared across all beCPG connectors.

Installation

1. Request the connector distribution archive from beCPG support (e.g., becpg-csv-connector-x.x.x-distribution.zip)
2. Download and unzip the connector archive
3. Configure the application.properties file in the config folder

Running the Connector

Linux

./becpg-connector.sh

Windows

Double-click becpg-connector.bat.

Docker

docker run --rm -v "$PWD":/usr/becpg-connector -v "$PWD"/data:/usr/becpg-connector/data -w /usr/becpg-connector/data \
   openjdk:17 java -Dfile.encoding=UTF8 \
   -jar /usr/becpg-connector/lib/becpg-connector.jar --spring.profiles.active=sample

Maven

mvn spring-boot:run -Dspring-boot.run.arguments=--spring.profiles.active=dev

Configuration Methods

1. Using application.properties

Use the application-sample.properties file in the config folder as a template. Rename it to application-{profile}.properties.

2. Managing Profiles

Create multiple application-{profile}.properties files for different configurations. Specify the profile at startup:

--spring.profiles.active=sample

3. Overriding Parameters

Parameters can be overridden directly in the startup script using the Java -D option:

java -Dcontent.service.url=https://server.becpg.local:443 \
     -Dconnector.dest.path="./data" \
     -jar ./lib/becpg-connector.jar --spring.profiles.active=sample

4. Via beCPG Publication Channels

Connectors can be configured directly in the beCPG UI:

1. Go to beCPG Administration → Edit: Characteristics
2. Select Publication channels in the left panel
3. Add or edit a channel and provide configuration in JSON format:

{
  "properties": {
    "connector.notify.enabled": false,
    "connector.notify.from": "support@becpg.fr",
    "connector.notify.to": "ops@becpg.fr"
  }
}

Server Connection (Mandatory)

content.service.url=https://your-becpg-instance:443
content.service.security.basicAuth.username=username
content.service.security.basicAuth.password=password

Destination Path (Mandatory)

connector.dest.path=.

Warning: On Windows, use C:\\Temp\\becpg-connector or C:/Temp/becpg-connector

Entity Selection

Connectors operate in two modes: Query Mode or Channel Mode.

Query Mode

Enabled if connector.query.template is defined. Uses a search query where %s is replaced by the date of the last successful import (stored in the lastImport file).

connector.query.template=(@cm\\:created:[%s TO MAX] OR @cm\\:modified:[%s TO MAX]) AND ( ASPECT:\"bcpg:productAspect\" OR TYPE:\"bcpg:client\" OR TYPE:\"bcpg:supplier\" )

Channel Mode

Default mode if no query template is provided. Entities are selected in beCPG by adding them to the corresponding Publication Channel.

connector.channel.id=your-channel-id

Data Extraction

Fields to extract are defined via three main properties:

remote.fields=bcpg:eanCode,cm:title,bcpg:legalName
remote.lists=bcpg:allergenList,bcpg:ingList
remote.params={"appendCode":false,"appendNodeRef":false}

You can also define extra fields and lists:

remote.extra.fields=ca:customfield1,ca:customfield2
remote.extra.lists=testList,exampleList

Delivery Protocols

Defined via connector.send.protocol. Multiple protocols can be used (comma-separated): local, ftp, ftps, sftp, remote.

connector.send.protocol=local,sftp
connector.send.deleteOnSuccess=false

SFTP Configuration

connector.send.sftp.host=
connector.send.sftp.port=22
connector.send.sftp.login=
connector.send.sftp.password=
connector.send.sftp.destFolder=

Local Configuration

connector.send.local.destFolder=

Remote Configuration

connector.send.remote.destNodeRef=workspace://SpacesStore/XXX

Notifications

connector.notify.enabled=true
connector.notify.from=support@becpg.fr
connector.notify.to=admin@company.com

spring.mail.host=localhost
spring.mail.port=25
spring.mail.username=
spring.mail.password=
spring.mail.properties.mail.smtp.auth=true
spring.mail.properties.mail.smtp.starttls.enable=true

Post-Connector Actions

Execute actions after the connector has run:

connector.channel.onSuccess.remote={"attributes": {"bcpg:productState": "Simulation"}}
connector.channel.onError.remote=

General Formatting

connector.decimalFormat=#.####
connector.dateFormat=dd/MM/yyyy
connector.field.assocSeparator=|

Debugging

logging.level.fr.becpg.connector=INFO
logging.level.fr.becpg.connector.readers=DEBUG
logging.level.fr.becpg.connector.writer=DEBUG
logging.level.fr.becpg.connector.notifiers=DEBUG

Or via command line:

-Dconnector.debug.level=debug

SSL Configuration

Disable SSL verification (for testing only):

remote.ssl.trustAll=true

Compatibility

Compress headers when the list of fields is too long:

remote.compress.param=true

Scheduler Mode

Run the connector periodically based on a CRON expression:

spring.batch.job.enabled=false
connector.scheduler.enabled=true
connector.cron.expression=0 0/5 * * * ?

Backup Configuration

connector.dest.path.shouldCreateBackup=true

CSV Connector

The CSV Connector exports beCPG entities and their associated lists or documents into CSV files based on configurable mappings.

CSV-Specific Properties

CSV Formats

For more details: https://commons.apache.org/proper/commons-csv/apidocs/org/apache/commons/csv/CSVFormat.html

Mapping Configuration

Via application.properties

Use the prefix mapping.csv.<entityType>. By default, the filename matches the type.

# Basic mapping
mapping.csv.bcpg_finishedProduct=bcpg:code,cm:name,cm:title

# Custom filename
mapping.csv.bcpg_finishedProduct.fileName=Export_Products

# Specific headers
mapping.csv.bcpg_finishedProduct.headers=ID,Name,Description

# Multiple files for same type (indexed from 0 to 9)
mapping.csv.bcpg_finishedProduct.0.fileName=File_1
mapping.csv.bcpg_finishedProduct.0=bcpg:code,cm:name
mapping.csv.bcpg_finishedProduct.1.fileName=File_2
mapping.csv.bcpg_finishedProduct.1=bcpg:erpCode,cm:productUnit

# Mapping multiple types with an alias
mapping.csv.bcpg_rawMaterial.alias=article
mapping.csv.bcpg_semiFinishedProduct.alias=article
mapping.csv.article=bcpg:code,cm:name,bcpg:productHierarchy1|bcpg:erpCode

Via Excel Mapping File

Set connector.csv.xlsxMapping=./config/mapping.xlsx. Each tab represents a CSV file.

Example:

Custom Filename with External XLSX Mapping

When you use an external XLSX mapping file with a filename pattern, the connector names the generated files <fileName>_<sheetName>. This prevents files from overwriting each other when several sheets share the same entity type.

This feature works in two scenarios.

1. Mapping file declared in .properties

connector.csv.xlsxMapping=./config/mapping.xlsx
mapping.csv.bcpg_finishedProduct.fileName=Export_Products

The generated files are named <fileName>_<sheetName>, where <sheetName> is the name of the Excel tab in the mapping file.

2. Mapping file in a publication channel

When you use a publication channel, configure the properties in the .properties file:

connector.channel.id=APIPresentation
connector.csv.xlsxMapping=./config/mapping.xlsx
mapping.csv.bcpg_finishedProduct.fileName=Export_Products

Filename patterns

Static filename (all entities in one file):

mapping.csv.bcpg_finishedProduct.fileName=Export_Products

Result: Export_Products_finishedProduct.csv (a single file containing all entities).

Dynamic filename (one file per entity):

mapping.csv.bcpg_finishedProduct.fileName={entity|bcpg:erpCode}

Result: one file per entity, e.g. PROD123_finishedProduct.csv, PROD456_finishedProduct.csv.

Available patterns:

• {entity|bcpg:code}: entity code
• {entity|bcpg:erpCode}: ERP code
• {entity|cm:name}: entity name
• any entity property, using {entity|propertyName}

Field Export Configuration

Nested Fields

Use the pipe | to export properties from associations:

bcpg:productGeoOrigin|bcpg:geoOriginISOCodeNumeric

Multilingual Fields

Append the language code after the field name:

• cm:description_en: Description in English
• bcpg:legalName_ja_JP: Legal name in Japanese

Document Extraction

Use doc, document, or share prefixes in your mapping:

• doc|<sourcePath>;<destPath>: Download matching documents. Column is hidden in CSV
• document|<sourcePath>;<destPath>: Download and write the local path in CSV
• share|<sourcePath>: Write a public share URL in CSV

Example:

document|/Images/*.jpg;images/${entity.bcpg:code}-${document.cm:name}

Placeholders:

• ${entity|bcpg:code}: Entity property value
• ${document.cm:name}: Document name
• ${document.path}: Document path
• ${document.id}: Document ID

List Export Configuration

Export associated lists by defining specific mappings. Fields prefixed with entity| export properties from the main entity.

mapping.csv.nutList=entity|bcpg:code,bcpg:nutListNut,bcpg:nutListValue,bcpg:nutListUnit
mapping.csv.packagingList=entity|bcpg:code,bcpg:packagingListProduct,bcpg:packagingListQty

Special List Fields

Nutrient List

• nut["Code"] or nut["Code"]("locale"): Get rounded values (e.g., nut["ENER-KJO"]("EU"))
• Available rounded fields: roundedValue_locale, roundedSecondaryValue_locale, roundedValuePerServing_locale, roundedMini_locale, roundedMaxi_locale, roundedGDAPerc_locale, roundedValuePerContainer_locale, roundedGDAPercPerContainer_locale

Required mapping:

mapping.csv.nutList=bcpg:nutListNut|gs1:nutrientTypeCode,bcpg:nutListRoundedValue

Claim List

• claim[Code]: Returns "true" if criteria are respected (e.g., claim[ORGANIC_GS1])

Required mapping:

mapping.csv.labelClaimList=bcpg:lclLabelClaim|bcpg:labelClaimCode,bcpg:lclClaimValue,bcpg:lclComments

Ingredient List

• ingLabelingList[label]|value: Returns manual labeling if provided, otherwise formulated
• ingLabelingList[label]|manualValue: Manual labeling only
• ingLabelingList[label]|formulatedValue: Formulated labeling only

By default, HTML is removed. Add @ at the end to keep HTML.

Required mapping:

mapping.csv.ingLabelingList=bcpg:illManualValue,bcpg:illValue,bcpg:illGrp|bcpg:lrLabel

Allergens

• voluntaryAllergen / inVoluntaryAllergen: Legal names separated by commas
• voluntaryAllergen|code / inVoluntaryAllergen|code: Codes separated by commas
• voluntaryAllergen_en: Legal names in English

Required mapping:

mapping.csv.allergenList=bcpg:allergenListAllergen|bcpg:allergenCode,bcpg:allergenListAllergen|bcpg:legalName,bcpg:allergenListVoluntary,bcpg:allergenListInVoluntary

Other Lists

• listName[0]|prop: Property of item 0 in the list (e.g., compoList[0]|bcpg:compoListQty)

SpEL Formulas

Use the formula| prefix for complex logic:

# Property access
formula|props["bcpg:erpCode"]

# Access via associations (escape | with \\|)
formula|props["bcpg:clients\\|cm:title"]

# Condition logic
formula|props["qty"] != null ? props["qty"] / props["total"] : props["qty"]

# Formatting numbers
formula|(new java.text.DecimalFormat("#.###")).format(props["qty"])

For more information: http://docs.spring.io/spring/docs/3.2.x/spring-framework-reference/html/expressions.html

Code Mapping

Via application.properties

mapping.bcpg_productState.map=Valid|VALIDATED,Simulation|SIMULATION

Via Excel Mapping File

Add a sheet named Mapping:

Mandatory Fields

connector.csv.mandatoryFields=bcpg:useByDate,bcpg:unitPrice

Entities missing these fields will not be extracted.

Document Connector Plugin

Activate the document extraction plugin:

connector.plugin.class=fr.becpg.connector.plugin.StandardDocumentVisitor

Configure document mappings:

mapping.document.bcpg_finishedProduct=/Images/produit.jpg|img_${bcpg:erpCode}.jpg;/Documents/${cm:name} - Technical Sheet.pdf|TS_${bcpg:erpCode}.pdf

Format: <source path>|<destination path> separated by ;

Workflow Connector Plugin

Export workflows and their tasks in CSV format:

connector.plugin.class=fr.becpg.connector.plugin.WorkflowCSVVisitor

Available mappings:

mapping.csv.workflow_instances=id,name,title,description,isActive,startDate,priority,message,endDate,dueDate,initiator.userName
mapping.csv.workflow_tasks=workflowInstance|id,workflowInstance|name,id,state,name,title,description,bpm:completionDate,bpm:workflowDueDate

Filter workflows:

connector.query.template=startedAfter=%sZ

Possible filter values: state, initiator, priority, dueBefore, dueAfter, definitionId, definitionName, startedBefore, startedAfter, completedBefore, completedAfter, exclude

Multilevel Connector Plugin

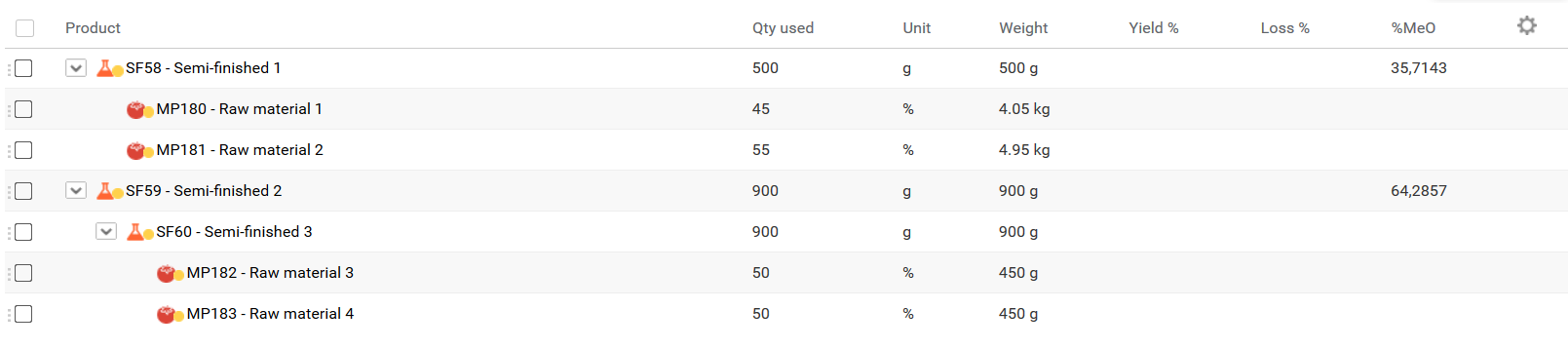

Extract entities with their composition data lists in multilevel format:

connector.plugin.class=fr.becpg.connector.plugin.MultiLevelCSVVisitor

This plugin extracts the composition of a Semi-finished product within a Finished product, or of a Semi-finished product within another Semi-finished product, and so on. It also shows the level of each component.

Example - Composition of a finished product:

Features

• Extracts the composition of semi-finished products within finished products
• Shows the level of each component
• Calculates quantities at product level
• Calculates packaging values (products per PCB, boxes per pallet at each level)
• Calculates the quantity of packaging used for each product
• Extracts dynamic characteristics (prefixed with dyn_)

Example: Property "qty multilevel" becomes dyn_qty_multilevel

For more information on dynamic characteristics, see Recipe Formulation - Formulated Characteristics.

Quantity Calculation

The level of semi-finished C is equal to 3. So, to calculate its quantity at product level, we must first calculate the quantity of semi-finished B at product level using a rule of three:

Semi-finished B QTY = (Semi-finished B Weight / Semi-finished A Weight) * Semi-finished A Weight at product level

• Weight of semi-finished A = sum of its components (found in formulated characteristics)

• Semi-finished B QTY = (0.31 / 0.66) × 5 = 2.348 kg

You then use this result to calculate the quantity of semi-finished C, and so on as you go down the composition levels.

Detailed example:

• Quantity of semi-finished B at product level => after calculation = 2.348 kg
• Semi-finished B weight = 0.17 kg
• Semi-finished C quantity used in the composition of semi-finished B = 0.1 kg
• The quantity of semi-finished C used at product level = (0.1 / 0.17) × 2.348 = 1.381 kg

The quantity of Raw material at product level is calculated with the same logic.

Configuration

As in the standard connector, to activate the multilevel connector:

connector.plugin.class=fr.becpg.connector.plugin.MultiLevelCSVVisitor

As the plugin is dedicated to Finished and Semi-finished products, it does not produce CSV files for other entity types (clients, suppliers, etc.). Configure the search query accordingly:

connector.query.template=(@cm\\:created:[%s TO MAX] OR @cm\\:modified:[%s TO MAX]) AND ( TYPE:\"bcpg:finishedProduct\" OR TYPE:\"bcpg:semiFinishedProduct\")

GS1 Connector

The GS1 Connector exports beCPG products to GS1 GDSN XML (Catalogue Item Notification), with optional delivery to Atrify or Synkka.

GS1-Specific Configuration

Core Settings

Advanced Settings

Field Mapping

Rename fields per environment using sourceQName|targetQName pairs:

remote.fields=bcpg:eanCode,gs1:depth,gs1:width,gs1:height
remote.extra.fields=specific:depth,specific:width,specific:height
remote.fields.map=gs1:depth|specific:depth,gs1:width|specific:width,gs1:height|specific:height

Synkka Integration

synkka.key=your-api-key-here
synkka.baseUrl=https://api.synkka.example

Example Configuration

content.service.url=https://dev.becpg.fr:443
content.service.security.basicAuth.username=connector
content.service.security.basicAuth.password=secret

connector.channel.id=gs1
connector.dest.path=target/gs1

remote.gs1.locales.supported=fr,en
remote.gs1.providerName=beCPG
remote.gs1.providerGln=0000000000000
remote.gs1.senderGln=0000000000000
remote.gs1.receiverGln=0000000000000

remote.fields=bcpg:eanCode,cm:description,gs1:depth,gs1:width,gs1:height

For detailed field mapping, see the MAPPING.md file in the connector distribution.

Equadis Connector

The Equadis Connector exports beCPG products to Equadis in XML format.

Equadis-Specific Configuration

Filename Format

Pattern: products_<code>_<ddMMyy_HHmm>.xml

• <code>: bcpg:erpCode if present, otherwise the entity code

Mapping Conventions

The connector uses an Excel mapping file with HEADER and COLUMNS sections.

Header Paths

Pattern: parent1/parent2/.../FIELDID

Special Prefixes and Suffixes

• #MULTI: Prefix on a FIELDID to iterate over an array
• #MULTIGROUP: Prefix on a parent to create repeatable groups
• @<lang>: Suffix on field IDs to add language attribute

Example Mapping

For detailed field mapping, see the MAPPING.md file in the connector distribution.

Salsify Connector

The Salsify Connector exports products from beCPG to Salsify (SupplierXM) via the public Salsify API.

Salsify-Specific Configuration

API Settings

GS1 & Localization

Additional Fields

The connector can send specific fields even if they are absent in beCPG:

• remote.salsify.rulesActivate, remote.salsify.rulesDesactivate
• remote.salsify.scaleDescriptionText, remote.salsify.incotermCode
• remote.salsify.palletpackagingTypeCode, remote.salsify.palletIsOrderableUnit
• remote.salsify.ownerMarketGLN, remote.salsify.ownerMarketName
• remote.salsify.depthProduct, remote.salsify.widthProduct, remote.salsify.heightProduct

Templates and Mapping

JSON rendering uses FreeMarker templates. Ensure your remote.fields align with the template and your Salsify data model.

Key Field Mappings

• bcpg:eanCode, cm:title, gs1:functionalName, cm:description
• Unit flags: gs1:isTradeItemABaseUnit, gs1:isTradeItemAConsumerUnit
• Dimensions/weights: gs1:depth, gs1:width, gs1:height, bcpg:netWeight
• Target markets: gs1:targetMarkets|gs1:targetMarketCountries
• Allergens/ingredients/nutrition: bcpg:allergenList*, bcpg:ingList*, bcpg:nutList*

Docker Deployment

FROM eclipse-temurin:17-jre
WORKDIR /app
COPY target/becpg-salsify-connector-*.jar app.jar
ENV JAVA_OPTS=""
ENTRYPOINT ["sh","-c","java $JAVA_OPTS -jar /app/app.jar"]

docker run --rm \
  -e REMOTE_SALSIFY_CLIENT_ID=XXXXX \
  -e REMOTE_SALSIFY_CLIENT_SECRET=YYYYY \
  -e SPRING_PROFILES_ACTIVE=dev \
  becpg-salsify-connector:local

For detailed field mapping, see the MAPPING.md file in the connector distribution.

Troubleshooting

Common Issues

• No files generated: Verify connector.channel.id and that the channel returns entities
• Authentication failures: Verify content.service.security credentials
• File not written: Check connector.dest.path permissions
• Headers missing/duplicated: If HEADER is set in Excel, the writer won't auto-generate from COLUMNS
• Document extraction failed: Confirm sourcePath;destPath format and check logs

Error Handling

• Automatic Retries: Maximum 3 retries on network timeouts
• Error Recovery: Individual entity processing errors don't fail the entire batch
• Validation: Schema validation before writing/sending

Annex I: Certificate Installation (Windows)

Getting the beCPG server certificate:

1. In Firefox, click the lock icon.

1. Click the arrow to the right of the connection status.

1. Click "More information".

1. Click "Display certificate".
2. Go to the "Miscellaneous" section and download the PEM (cert) certificate.

1. Save the file in a folder on your computer.

Open a terminal in your Java folder.

Note: You may need to open a terminal with administrator rights. Search for "cmd" in the Windows search bar, right-click it and select "Open as administrator".

Navigate to the Java folder using the cd command. Example with a Java folder located at C:\Program Files\Java\jre1.8.0_241.

Check that bin\keytool and lib\security\cacerts exist in the Java folder.

Once the terminal is open, use the following command:

bin\keytool -import -alias {certificate_name} -file {pem_file_location} -keystore lib\security\cacerts

Example with a certificate named becpg.pem located in C:\tmp with alias becpg:

bin\keytool -import -alias becpg -file C:\tmp\becpg.pem -keystore lib\security\cacerts

The default password is: changeit

Follow the steps displayed by the terminal. Once installed, verify the installation:

bin\keytool -list -v -alias becpg -keystore lib\security\cacerts
