Publication channels

Publication channels feed and maintain a queue of entities to process.

Administration

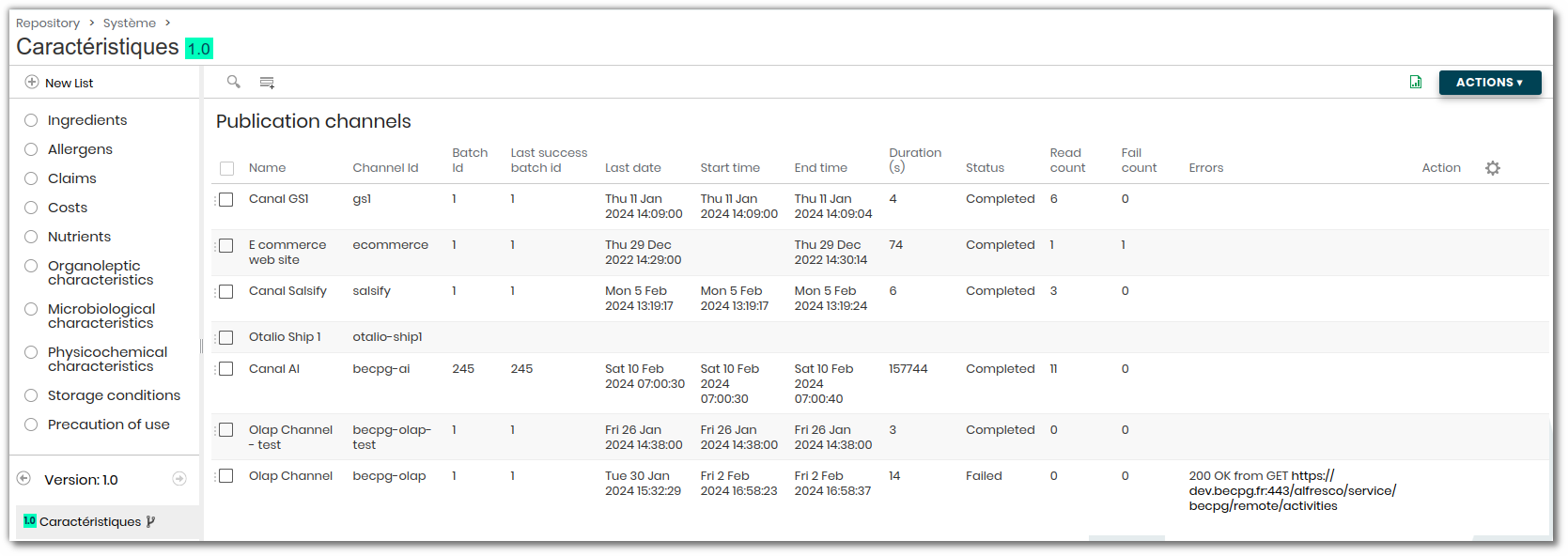

A channel is defined in the administration and has the following fields:

  • A name (Display name)
  • An identifier (unique identifier of the channel used by the connectors)
  • A catalog identifier (allows you to indicate a catalog associated with the channel) [optional]
  • A configuration JSON [optional]
  • A configuration file used by the associated connector [optional]

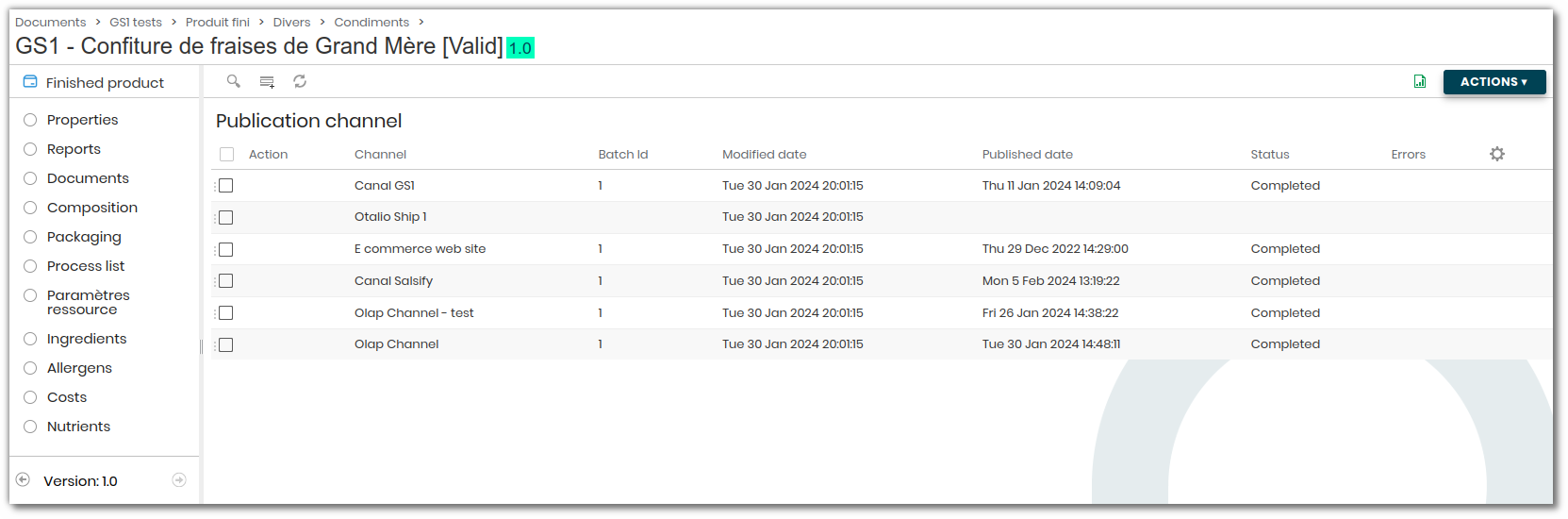

On each entity, the "Publishing Channels" list indicates the channels to publish the entity to.

Each connector is responsible for feeding its channel. Once a connector is executed, the following information appears in the administration:

  • Batch identifier
  • Start/end time
  • Duration
  • The status of the last batch
  • The identifier of the last successful batch
  • The number of processed/failed entities on the last batch
  • Any batch errors

A successful batch does not mean that all entities of the batch were imported successfully, but that the batch ran to the end.

The last date is the date used to return the entities of the batch. The connector updates it, and you can also modify it manually.

The action field lets you:

  • Stop the connector ("STOP")
  • Replay entities in error ("RETRY")
  • Resynchronize all entities ("RESET")

Entity

Each entity has the following fields:

  • Action: defines the action to take during the next synchronization batch. Its possible values are:
    • "RETRY": Replays this entity during the next batch if it previously failed.
    • "STOP": Prevents the synchronization of this entity with the channel.
  • Publication date: the date of publication in the channel
  • Batch ID: the identifier of the last batch
  • Status: the status of the last batch and any errors
  • Modification Date: the modification date

If a catalog is associated with the channel, the modified date is only updated when audited fields of the catalog change. If no catalog is associated, this date is filled with the earliest of the formulation, modification and creation dates.

Configuration

By default, a channel returns the channel member entities that have not been published yet or whose modified date is later than their publication date. The channel excludes failed entities: use the "RETRY" action to replay them.

You can either configure a channel to return the results of a search, or filter the channel member entities with a search.

You can configure a specific search on a channel using the "Configuration" field.

The following JSON values are possible.

Example: retrieves all products, clients, and suppliers even if they do not belong to the channel:

 {
  "query": "(@cm\\:created:[%s TO MAX] OR @cm\\:modified:[%s TO MAX]) AND(TYPE:\"bcpg:product\" OR TYPE:\"bcpg:client\" OR TYPE:\"bcpg:supplier\" )",
  "isFilter": false
}

isFilter indicates whether we are filtering channel member entities or if the channel is of search type. %s is replaced by the last date field.

Example: filters channel member entities by including only validated products:

 {
  "query": "TYPE:\"bcpg:product\"  AND @bcpg\\:productState:\"Valid\" ",
  "isFilter": true
}

excludePublishedEntities is a boolean parameter. By default (true), the channel excludes the entities that have already been published. Set it to false to retrieve all entities of a channel, including those that have already been published.

Example: retrieves all member entities of the channel, keeping only validated products, including those that have already been published.

 {
"query": "TYPE:\"bcpg:product\"  AND @bcpg\\:productState:\"Valid\" ",
  "isFilter": true,
  "excludePublishedEntities":false
}

Connector

You can pass properties to the connector using the properties parameter of the configuration JSON:

{
  "properties": {
  "connector.notify.enabled": true,
  "connector.notify.from":"support@becpg.fr",
  "connector.notify.to": "support@becpg.fr",
  "remote.extra.fields": "cm:titled,cm:description",
  "remote.extra.lists": "bcpg:compoList"
  }
}

These parameters are specific to the channel. You can also configure the connector using configuration files.

Channel Configuration Parameters

connector.channel.id=id1,id2,id3 // Channels configured for this connector

Actions to perform on the entity after the connector runs:

connector.channel.onSuccess.action=STOP (Default empty)
connector.channel.onError.action=STOP (Default value of the channel)

JSON to apply to the entity after the connector runs, in remoteEntity format:

connector.channel.onSuccess.remote= {"attributes": {"bcpg:productState": "Simulation"}}
connector.channel.onError.remote=

File Sending

connector.send.protocol=remote,sftp,ftp,ftps // One or more protocols separated by commas
connector.send.deleteOnSuccess=true // Delete files from the server after successful transmission

Remote protocol: drops files into a folder in beCPG.

connector.send.remote.destNodeRef=9ffb8192-6a9a-4921-94fa-22d83ad43d64 // Destination

SFTP / FTP / FTPS protocols: drop files via SFTP.

connector.send.sftp.host=
connector.send.sftp.port=
connector.send.sftp.login=
connector.send.sftp.password=
connector.send.sftp.destFolder=

For multichannel use, use:

connector.send.{channelId}.

Notification Parameters

Email notification:

connector.notify.enabled=true // Active
connector.notify.from=support@becpg.fr // Email sender
connector.notify.to=support@becpg.fr // Email recipient

API

The LIST query returns the list of entities:

<url>/becpg/remote/channel/list?channelId={id}</url>
<url>/becpg/remote/channel/list?channelNodeRef={nodeRef}</url>

The maxResults parameter specifies the number of results (-1 returns all the results).

The format parameter changes the response format:

  • format=xml (default)
  • format=json (JSON format)

The fields parameter specifies the fields or associations to extract in the results.

Architecture

The caller is responsible for updating the publication channels and entities, following this sequence:

sequenceDiagram
    actor Connector
    participant beCPG-PLM

    beCPG-PLM->>Connector: Retrieve channel info
    Connector->>Connector: Start batch
    Connector->>beCPG-PLM: Reset channel info
    beCPG-PLM->>Connector: List channel entities
    beCPG-PLM->>Connector: Retrieve entity info
    Connector->>Connector: Process entity
    Connector->>beCPG-PLM: Update channel info on entity
    Connector->>beCPG-PLM: Update channel
    Connector->>Connector: End batch

Fetch information from the publication channel

To retrieve information from a publication channel, make an HTTP GET request to the following URL:

/alfresco/service/becpg/remote/entity?format=json&query=+TYPE:%22bp:pubChannel%22%20AND%20%3Dbp%5C:pubChannelId:%22sample-canal%22%20

This query returns the publication channel information in the following form:

{
   "entity": {
     "path": "/app:company_home/cm:System/cm:Characts/bcpg:entityLists/cm:PubChannels",
     "cm:name": "Sample channel",
     "attributes": {
       "bp:pubChannelId": "sample-channel",
       "bp:pubChannelConfig": "..."
     }
   }
}

Batch start and publication channel information reset

To start a batch and reset the publication channel information, make an HTTP PUT request to the following URL:

/alfresco/service/becpg/remote/entity?format=json

Send the following information in the request body:

{
   "entity": {
     "path": "/app:company_home/cm:System/cm:Characts/bcpg:entityLists/cm:PubChannels",
     "type": "bp:pubChannel",
     "attributes": {
       "bp:pubChannelBatchDuration": null,
       "bp:pubChannelBatchId": 1,
       "bp:pubChannelStatus": "STARTED",
       "bp:pubChannelBatchEndTime": null,
       "bp:pubChannelBatchStartTime": 1672320000652
     },
     "bp:pubChannelId": "sample-channel"
   }
}

Note:

The dates are in timestamp format (the number of milliseconds since January 1, 1970).

List of publication channel entities

To get the list of entities associated with a publication channel, make an HTTP GET request to the following URL:

/alfresco/service/becpg/remote/channel/list?format=json&channelId=sample-channel

Retrieval of information from each entity

To retrieve information for a given entity, make an HTTP GET request to the following URL:

/alfresco/service/becpg/remote/entity?format=json&nodeRef={entityNodeRef}

Where {entityNodeRef} is the nodeRef of the entity to retrieve.

Update of the entity channel information

To update channel information on a given entity, make an HTTP POST request to the following URL:

/alfresco/service/becpg/remote/entity?format=json&nodeRef={entityNodeRef}

Send the following information in the request body:

{
   "entity": {
     "datalists": {
       "bp:pubChannelList": [
         {
           "type": "bp:pubChannelList",
           "attributes": {
             "bp:pubChannelListStatus": "COMPLETED",
             "bp:pubChannelListError": "",
             "bp:pubChannelListAction": "STOP", // It can also be an empty string or "RETRY"
             "bp:pubChannelListBatchId": 1
           },
           "bp:pubChannelListChannel": {
             "path": "/app:company_home/cm:System/cm:Characts/bcpg:entityLists/cm:PubChannels",
             "type": "bp:pubChannel",
             "bp:pubChannelId": "sample-channel"
           }
         }
       ]
     }
   }
}

Note:

  • bp:pubChannelListStatus can be "COMPLETED" or "FAILED".
  • bp:pubChannelListAction can be an empty string, "STOP" or "RETRY".

Update of the publication channel once the batch is complete

After the batch completes, update the publication channel by making an HTTP PUT request to the following URL:

/alfresco/service/becpg/remote/entity?format=json

Send the following information in the request body:

{
   "entity": {
     "docs": [],
     "path": "/app:company_home/cm:System/cm:Characts/bcpg:entityLists/cm:PubChannels",
     "type": "bp:pubChannel",
     "attributes": {
       "bp:pubChannelLastDate": 1672320540452,
       "bp:pubChannelAction": null,
       "bp:pubChannelBatchDuration": 74,
       "bp:pubChannelBatchId": 1,
       "bp:pubChannelStatus": "COMPLETED",
       "bp:pubChannelFailCount": 1,
       "bp:pubChannelBatchEndTime": 1672320614749,
       "bp:pubChannelError": "",
       "bp:pubChannelLastSuccessBatchId": 1,
       "bp:pubChannelReadCount": 1
     },
     "bp:pubChannelId": "sample-channel"
   }
}

Note:

  • pubChannelBatchDuration is in seconds.

Example using Java and Spring batch APIs


/**
 * <p>StandardBatchExecutionListener class.</p>
 *
 * @author matthieu
 * @version $Id: $Id
 */
public class StandardBatchExecutionListener extends BatchContextHolder {

    private static final String PROP_PREFIX = "connector.channel.";
    private static final String PROP_PREFIX_ON_SUCCESS = "onSuccess.";
    private static final String PROP_PREFIX_ON_ERROR = "onError.";
    private static final String PROP_ACTION = "action";
    private static final String PROP_REMOTE = "remote";

    private static Logger logger = LoggerFactory.getLogger(StandardBatchExecutionListener.class);

    private ConnectorExecutionContext executionContext;
    private JobExecution jobExecution;

    /**
     * <p>Constructor for StandardBatchExecutionListener.</p>
     *
     * @param executionContext a {@link fr.becpg.connector.service.ConnectorExecutionContext} object
     */
    public StandardBatchExecutionListener(ConnectorExecutionContext executionContext) {
        super();
        this.executionContext = executionContext;
    }

    /** {@inheritDoc} */
    @Override
    public void beforeJob(JobExecution jobExecution) {
        super.beforeJob(jobExecution);
        this.jobExecution = jobExecution;

        if (executionContext.destPath() != null) {
            File destFolder = new File(executionContext.destPath());
            if (!destFolder.exists()) {
                destFolder.mkdirs();
            }
        }

        if (executionContext.channelId() != null) {
            RemoteEntity channelEntity = ChannelAPIModel.createChannelEntity(executionContext.channelId());

            Map<String, Object> attributes = new HashMap<>();
            attributes.put(ChannelAPIModel.PROP_CHANNEL_BATCHSTARTTIME, asDate(jobExecution.getStartTime()));
            attributes.put(ChannelAPIModel.PROP_CHANNEL_BATCHENDTIME, null);
            attributes.put(ChannelAPIModel.PROP_CHANNEL_BATCHDURATION, null);

            attributes.put(ChannelAPIModel.PROP_CHANNEL_BATCHID, jobExecution.getId());
            attributes.put(ChannelAPIModel.PROP_CHANNEL_STATUS, jobExecution.getStatus());

            channelEntity.setAttributes(attributes);

            executionContext.getEntityAPI().update(channelEntity);
        }

    }

    /** {@inheritDoc} */
    @Override
    public void afterJob(JobExecution jobExecution) {
        super.afterJob(jobExecution);
        BatchContext batchContext = get();

        Map<String, Object> attributes = new HashMap<>();
        attributes.put(ChannelAPIModel.PROP_CHANNEL_BATCHENDTIME, asDate(jobExecution.getEndTime()));
        attributes.put(ChannelAPIModel.PROP_CHANNEL_BATCHDURATION,
                jobExecution.getStartTime().until(jobExecution.getEndTime(), ChronoUnit.SECONDS));

        attributes.put(ChannelAPIModel.PROP_CHANNEL_BATCHID, jobExecution.getId());
        BatchStatus status = jobExecution.getStatus();

        if (!jobExecution.getStepExecutions().isEmpty()) {

            StepExecution stepExecution = jobExecution.getStepExecutions().iterator().next();
            attributes.put(ChannelAPIModel.PROP_CHANNEL_READCOUNT, stepExecution.getReadCount());
        }

        if (!ChannelAPIModel.ACTION_RETRY.equals(jobExecution.getJobParameters().getString(ConnectorService.ACTION_PARAM))) {
            if (ExitStatus.COMPLETED.equals(jobExecution.getExitStatus())) {
                attributes.put(ChannelAPIModel.PROP_CHANNEL_LASTSUCCESSBATCHID, jobExecution.getId());
                attributes.put(ChannelAPIModel.PROP_CHANNEL_LASTDATE, asDate(jobExecution.getStartTime()));

                if (executionContext.destPath() != null) {

                    LocalDateTime startDate = jobExecution.getStartTime();

                    try (BufferedWriter bw = new BufferedWriter(new FileWriter(executionContext.getLastImportDateFile()))) {
                        bw.write(DateTimeFormatter.ofPattern(BatchConfiguration.UTC_DATE_FORMAT).format(startDate));
                    } catch (IOException e) {
                        logger.error("Cannot write last import data", e);
                        jobExecution.addFailureException(e);

                    }
                }
            }
        }

        attributes.put(ChannelAPIModel.PROP_CHANNEL_ACTION, null);
        attributes.put(ChannelAPIModel.PROP_CHANNEL_STATUS, status);

        StringBuilder errors = new StringBuilder();

        if (batchContext.hasErrors() && !batchContext.getErrors().isEmpty()) {
            status = BatchStatus.FAILED;
            for (String error : batchContext.getErrors()) {
                errors.append(error);
                errors.append("\n");
            }
        }

        List<Throwable> exceptions = jobExecution.getFailureExceptions();

        for (Throwable exception : exceptions) {
            errors.append(formatExceptionMessage(exception));
            errors.append("\n");
        }

        attributes.put(ChannelAPIModel.PROP_CHANNEL_ERROR, errors.toString());
        if (batchContext.getFailedEntities() != null) {
            attributes.put(ChannelAPIModel.PROP_CHANNEL_FAILCOUNT, batchContext.getFailedEntities().size());
        } else {
            attributes.put(ChannelAPIModel.PROP_CHANNEL_FAILCOUNT, 0);
        }

        if (executionContext.channelId() != null) {
            RemoteEntity channelEntity = ChannelAPIModel.createChannelEntity(executionContext.channelId());
            channelEntity.setAttributes(attributes);
            executionContext.getEntityAPI().update(channelEntity);
        }
    }

    private Date asDate(LocalDateTime localDateTime) {
        return localDateTime!=null ? Date.from(localDateTime.atZone(ZoneId.systemDefault()).toInstant()) : null;
    }

    private String formatExceptionMessage(Throwable exception) {
        ByteArrayOutputStream baos = new ByteArrayOutputStream();
        exception.printStackTrace(new PrintStream(baos));
        return baos.toString();
    }

    /**
     * <p>onReadError.</p>
     *
     * @param ex a {@link java.lang.Exception} object
     */
    @OnReadError
    public void onReadError(Exception ex) {
        get().addError(ex.getMessage());
    }

    /**
     * <p>onProcessError.</p>
     *
     * @param item a {@link fr.becpg.api.model.RemoteEntityRef} object
     * @param ex a {@link java.lang.Exception} object
     */
    @OnProcessError
    public void onProcessError(RemoteEntityRef item, Exception ex) {
        sendError(item.getEntity().getId(), ex.getMessage());
    }

    /**
     * <p>afterProcess.</p>
     *
     * @param item a {@link fr.becpg.api.model.RemoteEntityRef} object
     * @param root a {@link fr.becpg.connector.model.RemoteEntityItemContext} object
     */
    @AfterProcess
    public void afterProcess(RemoteEntityRef item, RemoteEntityItemContext root) {

        if (logger.isDebugEnabled()) {
            ObjectMapper objectMapper = new ObjectMapper();

            try {
                logger.debug(objectMapper.setSerializationInclusion(Include.NON_NULL).writerWithDefaultPrettyPrinter()
                        .writeValueAsString(root.getEntity()));
            } catch (JsonProcessingException e) {
                logger.error("Invalid RemoteEntity", e);
            }
        }

    }

    /**
     * <p>onWriteError.</p>
     *
     * @param ex a {@link java.lang.Exception} object
     * @param items a {@link java.util.List} object
     */
    @OnWriteError
    public void onWriteError(Exception ex, Chunk<? extends RemoteEntityItemContext> items) {
        for (RemoteEntityItemContext item : items) {
            sendError(item.getEntity().getId(), ex.getMessage());
        }
    }

    /**
     * <p>afterWrite.</p>
     *
     * @param items a {@link java.util.List} object
     */
    @AfterWrite
    public void afterWrite(Chunk<? extends RemoteEntityItemContext> items) {
        BatchContext batchContext = get();
        for (RemoteEntityItemContext item : items) {
            if (batchContext.getFailedEntities().containsKey(item.getEntity().getId())) {
                sendError(item.getEntity().getId(), batchContext.getFailedEntities().get(item.getEntity().getId()));
            } else {
                sendSuccess(item.getEntity().getId());
            }
        }

        if (logger.isInfoEnabled()) {

            Integer totalCount = (Integer) jobExecution.getExecutionContext().get(ConnectorService.TOTAL_COUNT_PARAM);

            if (totalCount != null) {
                Long writes = 0L;
                for (StepExecution step : jobExecution.getStepExecutions()) {
                    writes = writes + step.getWriteCount();
                }

                logger.info("Write {}/{} entities - [ {} %]", writes, totalCount, Math.round(((writes * 1d) / (totalCount * 1d)) * 100));
            }
        }

    }

    private void sendSuccess(String id) {
        if (executionContext.channelId() != null) {
            try {
                RemoteEntity entity = new RemoteEntity();
                entity.setId(id);
                RemoteEntity publicationChannelListItem = new RemoteEntity();
                publicationChannelListItem.setType(ChannelAPIModel.TYPE_CHANNEL_LIST);

                Map<String, Object> identifiers = new HashMap<>();
                identifiers.put(ChannelAPIModel.ASSOC_CHANNELLIST_CHANNEL, ChannelAPIModel.createChannelEntity(executionContext.channelId()));
                publicationChannelListItem.setOptionalIdentifiers(identifiers);

                Map<String, Object> attributes = new HashMap<>();
                attributes.put(ChannelAPIModel.PROP_CHANNELLIST_BATCHID, get().getBatchId());
                attributes.put(ChannelAPIModel.PROP_CHANNELLIST_PUBLISHEDDATE, new Date());
                attributes.put(ChannelAPIModel.PROP_CHANNELLIST_STATUS, ChannelAPIModel.STATUS_COMPLETED);

                attributes.put(ChannelAPIModel.PROP_CHANNELLIST_ACTION, getChannelProperty(PROP_PREFIX_ON_SUCCESS + PROP_ACTION, ""));
                attributes.put(ChannelAPIModel.PROP_CHANNELLIST_ERROR, "");

                publicationChannelListItem.setAttributes(attributes);

                Map<String, List<RemoteNodeInfo>> datalists = new HashMap<>();

                datalists.put(ChannelAPIModel.TYPE_CHANNEL_LIST, Arrays.asList(publicationChannelListItem));

                entity.setDatalists(datalists);

                String remoteJsonString = getChannelProperty(PROP_PREFIX_ON_SUCCESS + PROP_REMOTE, null);
                if (remoteJsonString != null) {
                    ObjectMapper objectMapper = new ObjectMapper();
                    entity.merge(objectMapper.readValue(remoteJsonString, RemoteEntity.class));
                }

                executionContext.getEntityAPI().update(entity);
            } catch (JsonProcessingException | RemoteAPIException e) {
                get().addError(id + " - " + e.getMessage());
                logger.error("sendSuccess error: {} -  {}", id, e.getMessage());
            }
        } else if (executionContext.errorsPath() != null) {
            File errorFile = new File(executionContext.errorsPath() + File.separator + id + ".error");
            if (errorFile.exists()) {
                try {
                    FileUtils.delete(errorFile);
                } catch (IOException e) {
                    get().addError(id + " - " + e.getMessage());
                    logger.error("Cannot delete error file for: {} - {}", id, e.getMessage());
                }
            }

        }

        get().addVisitedEntity(id);
    }

    private void sendError(String id, String error) {
        if (logger.isInfoEnabled()) {
            logger.info("Error: {}", error);
        }

        if (executionContext.channelId() != null) {
            try {
                RemoteEntity entity = new RemoteEntity();
                entity.setId(id);
                RemoteEntity publicationChannelListItem = new RemoteEntity();
                publicationChannelListItem.setType(ChannelAPIModel.TYPE_CHANNEL_LIST);

                Map<String, Object> identifiers = new HashMap<>();
                identifiers.put(ChannelAPIModel.ASSOC_CHANNELLIST_CHANNEL, ChannelAPIModel.createChannelEntity(executionContext.channelId()));
                publicationChannelListItem.setOptionalIdentifiers(identifiers);

                Map<String, Object> attributes = new HashMap<>();
                attributes.put(ChannelAPIModel.PROP_CHANNELLIST_BATCHID, get().getBatchId());
                attributes.put(ChannelAPIModel.PROP_CHANNELLIST_STATUS, ChannelAPIModel.STATUS_FAILED);
                attributes.put(ChannelAPIModel.PROP_CHANNELLIST_ERROR, error);

                String action = getChannelProperty(PROP_PREFIX_ON_ERROR + PROP_ACTION, null);

                if (action != null) {
                    attributes.put(ChannelAPIModel.PROP_CHANNELLIST_ACTION, action);
                }

                publicationChannelListItem.setAttributes(attributes);

                Map<String, List<RemoteNodeInfo>> datalists = new HashMap<>();

                datalists.put(ChannelAPIModel.TYPE_CHANNEL_LIST, Arrays.asList(publicationChannelListItem));

                entity.setDatalists(datalists);

                String remoteJsonString = getChannelProperty(PROP_PREFIX_ON_ERROR + PROP_REMOTE, null);
                if (remoteJsonString != null) {
                    ObjectMapper objectMapper = new ObjectMapper();
                    entity.merge(objectMapper.readValue(remoteJsonString, RemoteEntity.class));
                }

                executionContext.getEntityAPI().update(entity);
            } catch (RemoteAPIException | JsonProcessingException e) {
                get().addError(id + " - " + error);
                logger.error("sendError error: {} - {} - {}", id, e.getMessage(), error);
            }
        } else if (executionContext.errorsPath() != null) {
            File destFolder = new File(executionContext.errorsPath());
            if (!destFolder.exists()) {
                destFolder.mkdirs();
            }

            try (BufferedWriter writer = new BufferedWriter(new FileWriter(executionContext.errorsPath() + File.separator + id + ".error"))) {
                writer.write(error);
            } catch (IOException e) {
                get().addError(id + " - " + error);
                logger.error("Cannot write error: {} - {} - {}", id, e.getMessage(), error);
            }

        }
        get().addFailedEntity(id, error);

    }

    private String getChannelProperty(String key, String defaultValue) {
        String ret = defaultValue;

        if (executionContext.getProperty(PROP_PREFIX + executionContext.channelId() + "." + key) != null) {
            ret = executionContext.getProperty(PROP_PREFIX + executionContext.channelId() + "." + key);
        } else if (executionContext.getProperty(PROP_PREFIX + key) != null) {
            ret = executionContext.getProperty(PROP_PREFIX + key);
        }
        return ret;
    }

}

results matching ""

    No results matching ""
